How to build a flexible magazine layout system

What to take away

• Begin with repeated editorial needs and production limits.
• Define columns, modules, spacing, and type roles as one system.
• Create components with rules for both normal and difficult content.
• Name allowed exceptions before deadline pressure invents them.
• Test the system across a complete issue map and responsive states.

A layout system turns recurring editorial decisions into a shared working language. It should help a team place, compare, and revise material quickly without making every article look identical. The result is a kit of constraints, components, and exception rules, not a folder of finished page pictures.

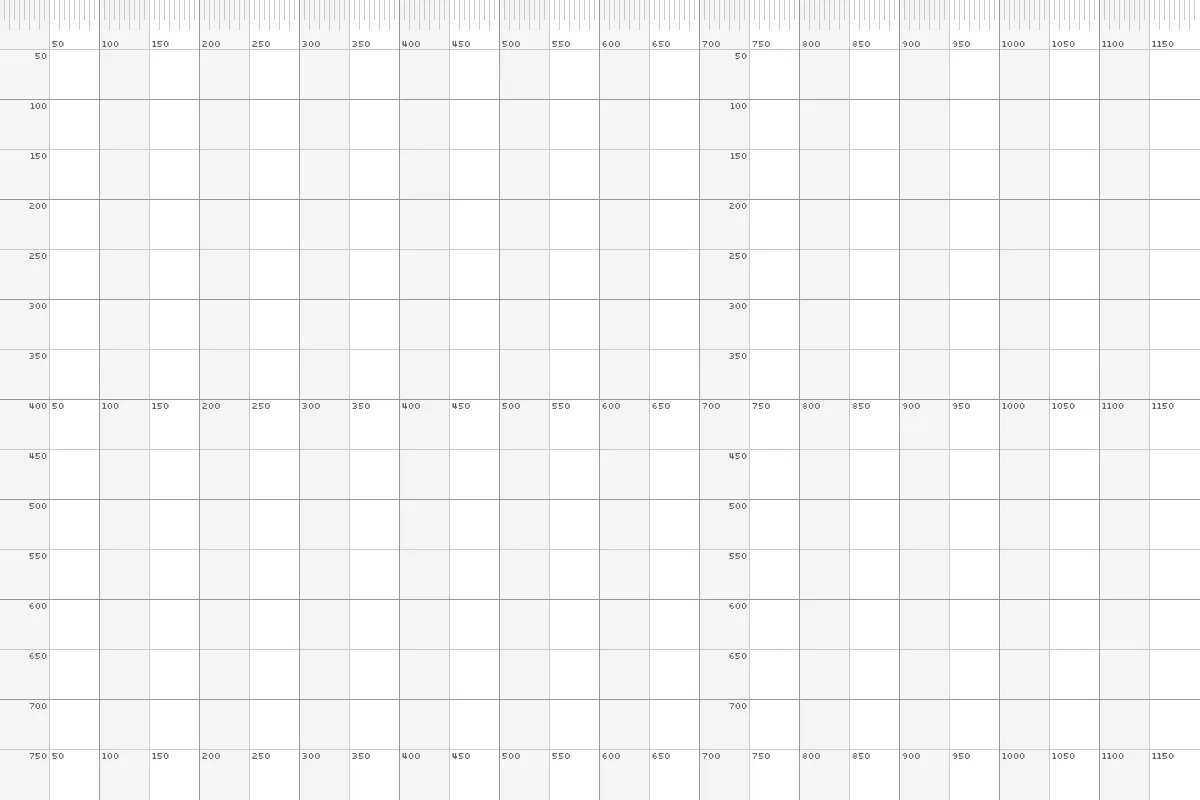

Grid image and credit

The grid demonstrates regular measurement. It is not a recommended magazine specification.

Inventory the content

Collect a representative issue and mark every recurring unit: title, deck, byline, lead, body, section heading, image, caption, credit, sidebar, table, chart, pull quote, footnote, folio, navigation cue, advertisement, and end mark. Record typical, minimum, and maximum lengths. Add accessibility text and digital controls, which are often missing from visual comps.

Establish page geometry

For print, confirm final trim, page count, binding, bleed, paper, and printer requirements. Set inner and outer margins with the binding in mind. Select a column count that can form useful wider and narrower combinations. Add horizontal modules or a baseline rhythm when they improve alignment rather than forcing awkward copy fitting.

For digital, establish a readable main container and content-based breakpoints. Decide when side material moves below the article, when a gallery becomes a swipe or stack, and how tables behave. Preserve source order so the layout remains intelligible without its visual arrangement.

W3C's explanation of information and relationships states the underlying rule: structure and relationships implied by visual formatting must survive a change of presentation, which means they have to be programmatically determined or available in text. A sidebar that reads as secondary only because it sits in a narrow gray column has no structure at all once the columns collapse.

Define stable components

Narrow each component to its editorial job. A feature opener might allow one headline role, optional deck, byline, lead image, caption, credit, and section marker. A data sidebar may require a title, source note, unit, and footnote. Specify what happens when a field is absent or too long.

MDN's explanation of the basic concepts of grid layout describes a grid as a set of intersecting horizontal and vertical lines defining rows and columns, supports fixed and flexible track sizes in the same grid, and places items by line number, line name, or a named area rather than by flow order. A print component needs the same discipline: state which spans a feature opener may occupy, then let the content pick among them.

Write the rules for exceptions

Define which elements may break columns, cross a spread, overlap an image, rotate, or change background. Require the exception to preserve reading order, caption connection, safe areas, and contrast. Set a review threshold for text over imagery, very small type, rotated copy, and any crossover near the gutter.

Stress-test the system

Build at least these samples:

1. A short department with no image
2. A long feature opener and dense continuation page
3. A photo essay with long captions
4. A table or chart with source notes
5. A spread with an advertisement beside editorial content
6. A narrow-screen article with enlarged text

Use real content and revise the system where several pages fail in the same way. Do not create a new one-off component for every edge case. First ask whether an existing role can be made more resilient.

Document and release

Publish component names, grid values, type roles, spacing units, image ratios, caption behavior, color uses, responsive changes, and approval rules. Include annotated examples of both correct use and failure. Version the system so changes made for one issue do not silently alter another in production.

Common questions

Is a baseline grid mandatory?

No. Use it when it produces helpful vertical rhythm without harming type or fitting.

How many columns are best?

Enough to create the combinations your content needs. The answer depends on page size, measure, images, and departments.

Can designers create one-off pages?

Yes, under named exception rules and with editorial, production, and accessibility checks.

What makes a system flexible?

It supports varied real content through limited, understandable rules rather than constant manual repair.
